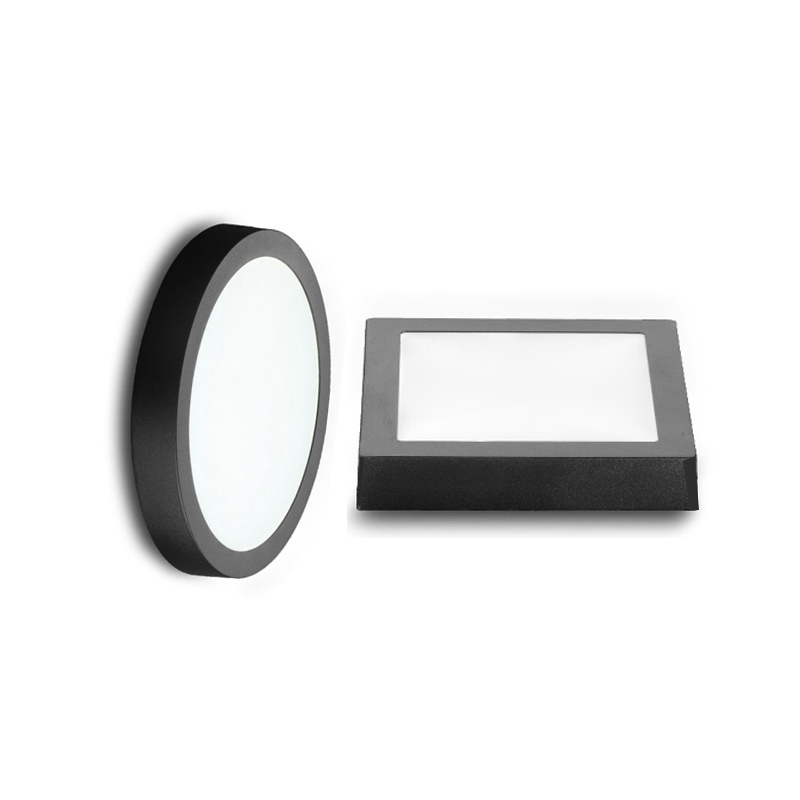

Surface-mounted, round LED panel with a sleek black finish for modern interiors.
Power options: 6W / 12W / 18W / 24W; diameters: Ø105 / 155 / 205 / 280 mm.
80 lm/W efficacy, CRI 80, CCT options 3000K / 4000K / 6500K.
Aluminum + PC construction for lightweight durability; PF 0.9.
Wide-range input AC175–265V (also listed AC85–265V); 2–5 years warranty.
OEM/ODM available; certifications include CE, C-tick, EMC, LVD, RoHS, SAA, SASO.
| Quantity: | |
|---|---|
BS-MB006
Bestshow
BS-MB006 brings a calm, even glow to corridors, reception areas, showrooms, and retail bays—without the bulk of traditional fixtures. The slim round form factors nest neatly against the ceiling, while the matte black trim reads clean and intentional. Uniform light from high-quality SMD2835 LEDs helps signage and finishes look true to color, and the diffuse lens softens edges to reduce distracting hotspots. For project teams, the series scales easily: four diameters map to four wattages, letting you match ceiling grids, aisle widths, and mounting densities with fewer SKUs. Aluminum and PC materials keep weight down for faster installs, and the high power factor driver supports efficient loads on shared circuits. With familiar surface-mount hardware and straightforward wiring, crews stay moving, and spaces open on schedule. Pair warm 3000K in waiting areas, neutral 4000K in general circulation, or crisp 6500K where punchy visibility is the brief.
| Item | Detail |
|---|---|
| Model | BS-MB006 |
| Installation | Surface mounted |
| Power Options | 6W / 12W / 18W / 24W |
| Dimensions (Ø) | 105 / 155 / 205 / 280 mm |
| LED Source | SMD2835 |
| Materials | Aluminum + PC |
| Input Voltage | AC175–265V（also listed AC85–265V） |
| Power Factor | 0.9 |
| Efficacy | 80 lm/W |
| CRI | 80 |
| CCT Options | 3000K / 4000K / 6500K |
| Certifications | CE, C-tick, EMC, LVD, RoHS, SAA, SASO |
| Warranty | 2–5 years |
| Applications | Supermarket, showroom, lobbies, mall, reception areas |
Consistent visual comfort: Edge-to-edge diffusion delivers soft, uniform illumination that reads as a continuous halo rather than a bright spot.
Right-sized performance: From 6W to 24W, each diameter is tuned for typical ceiling heights and throw distances in commercial interiors.
Material honesty: Anodized-look aluminum ring and PC optical diffuser balance rigidity with impact resistance during handling and maintenance.
Power quality: PF 0.9 minimizes reactive losses—useful on long runs or mixed loads in retail back-of-house.
Choice of ambiance: 3000K/4000K/6500K options allow lighting designers to craft mood per zone without changing the fixture family.
Trade-friendly: OEM/ODM support, labeling, packaging, and carton markings aligned to logistics workflows for distributors and contractors.
Where it works: circulation spaces, lift lobbies, reception desks, merchandise aisles, meeting-adjacent lounges.
How to specify:
Warm welcome zones (reception, lounges): 3000K for a softer, more premium vibe; select Ø205–280 mm at 18–24W when ceilings are 2.8–3.2 m.
General circulation (lobbies, corridors): 4000K keeps finishes neutral and signage legible; Ø155–205 mm at 12–18W typically covers 8–12 m² per unit.
Task-adjacent retail (demo tables, counters): 6500K for crisp contrast; check reflectances to manage glare on glossy surfaces.
Merchandising: stagger sizes to create rhythm and wayfinding cues along runs without changing fixture family.
Mounting: surface-mount plate with standard hard-wire connection; lightweight build simplifies overhead work.
Cable routing: accommodates typical junction box positions; keep slack managed to avoid pressure on the driver and diffuser.
Commissioning tips: group CCT by zone before close-out to avoid mixed color temperatures; document wattage/diameter mapping for maintenance teams.
Safety: isolate power prior to install; verify stable mains between 175–265V (or 85–265V where applicable) to protect the driver and maintain PF targets.
Maintenance: dust with non-abrasive cloth; avoid solvent-based cleaners on the PC diffuser.
Certifications: CE, C-tick, EMC, LVD, RoHS, SAA, SASO aligned to common import requirements across multiple regions.
Build assurance: consistent LED binning and driver QC help hold color across batches; carton labels track lot/date codes.
Warranty: 2–5 years support (region/program dependent). Please retain purchase documents and carton IDs for claims.
Environmental: RoHS-compliant materials; packaging sized to reduce void fill and freight intensity on pallet.
Branding: laser-etched or printed logo on trim/carton; barcode and SKU schema matched to retailer/DC requirements.
Electrics: wattage tuning within series envelope; alternate voltage tolerances by market.
Optics & finish: diffuser translucency, trim geometry, and black tone matching for portfolio consistency; mixed-finish cartons upon request.
Documentation: spec sheet, IES files, and install guides tailored to distributor portals; multilingual artwork for export markets.
MOQ: negotiable by wattage/diameter mix; master carton pack counts aligned to pallet footprints。
Lead time: depends on order size, customization, and certification set; forecast windows recommended for seasonal resets and tenders。
Carton design: shelf-ready outer with neutral brand zones for private label; clear wattage/diameter/CCT callouts to cut picking errors。
Logistics: export-grade cartons with edge crush resistance; inner trays protect PC diffusers from scuffing during long-haul.
Category focus：panel luminaires and commercial ceiling fixtures with repeatable QA routines—less variance, smoother rollouts。
Supply assurance：scalable capacity with OEM/ODM program governance to keep specs consistent across reorders。
Channel fluency：documentation、barcoding、carton art、and data sheets built for distributor ERPs and retail PIMs。
Service posture：samples on request、engineering feedback loops、and post-install support to protect project timelines and margins。
Q1: Is the panel dimmable?
This series lists efficacy/CRI/CCT/voltage/PF; dimming is not specified on the base model. If your project requires dimming, we can evaluate a driver option within the OEM program.
Q2: Can I use it in damp areas?
The base spec does not state an IP or damp rating. For bathrooms or canopies, request an IP-rated variant through customization.
Q3: What documentation is available for submittals?
We provide a spec sheet, IES (on request), and installation instructions. Certification letters for CE/EMC/LVD/RoHS/SAA/SASO can be attached for bids.
Q4: How should I choose CCT across zones?
Warm (3000K) for lounges/reception, neutral (4000K) for circulation, cool (6500K) where visual acuity is key. Keep a single CCT per contiguous area for visual coherence.
Q5: Can I private-label this model?
Yes. We support logo printing, packaging artwork, and data template matching for your PIM/ERP.
