Detachable UFO LED bulb (Model BS-QPUFO1) engineered for fast install and lean shipping.
30W/40W/50W options, AC 85–265V, E27/B22 bases, Sanan SMD2835 LEDs.
Up to approx. 100–110 lm/W efficacy with Aluminum + PC thermal design.
CCT 3000K / 4000K / 6500K, with broader 2700–7000K customization on request.
Isolated driver, low-flicker output, 3–5-year warranty, OEM/ODM available.
| Quantity: | |
|---|---|
BS-QPUFO1
Bestshow
Built for buyers who care about landed cost as much as lumen output, this detachable flying-saucer bulb brings warehouse-grade practicality to everyday lighting. Twist the base, click the head—installation feels as neat as tidying a workstation. The aluminum core wicks away heat; the PC body keeps it light yet sturdy. In retail aisles it washes shelves evenly; in back-of-house it brightens bays without glare. The real win is upstream: the removable holder compresses volume by roughly half, meaning fewer cartons, fewer pallets, and freight you can finally explain on a margin slide. From supermarkets to classrooms, it delivers clean, neutral light that reads true and keeps teams alert.
| Parameter | Value |
|---|---|
| Model | BS-QPUFO1 |
| Wattage | 30W / 40W / 50W |
| Input Voltage | AC 85–265V |
| Base | E27 / B22 |
| LED Source | Sanan SMD2835 |
| Luminous Efficacy | Approx. 100–110 lm/W |
| Correlated Color Temperature | 3000K / 4000K / 6500K (2700–7000K customizable) |
| Material | Aluminum + PC |
| Warranty | 3–5 years |
Specification notes & acceptance guidelines
Values above reflect the standard configuration; customization (e.g., CCT within 2700–7000K) is available on request with corresponding test reports.
Photometric performance is measured under nominal mains within the stated voltage range and stabilized temperature; minor variance is normal between production lots.
For procurement, we recommend defining acceptance criteria (e.g., tolerance bands for CCT and flux) in the PO to ensure consistent batches across replenishments.
Outcome-driven advantages your buyers can quantify

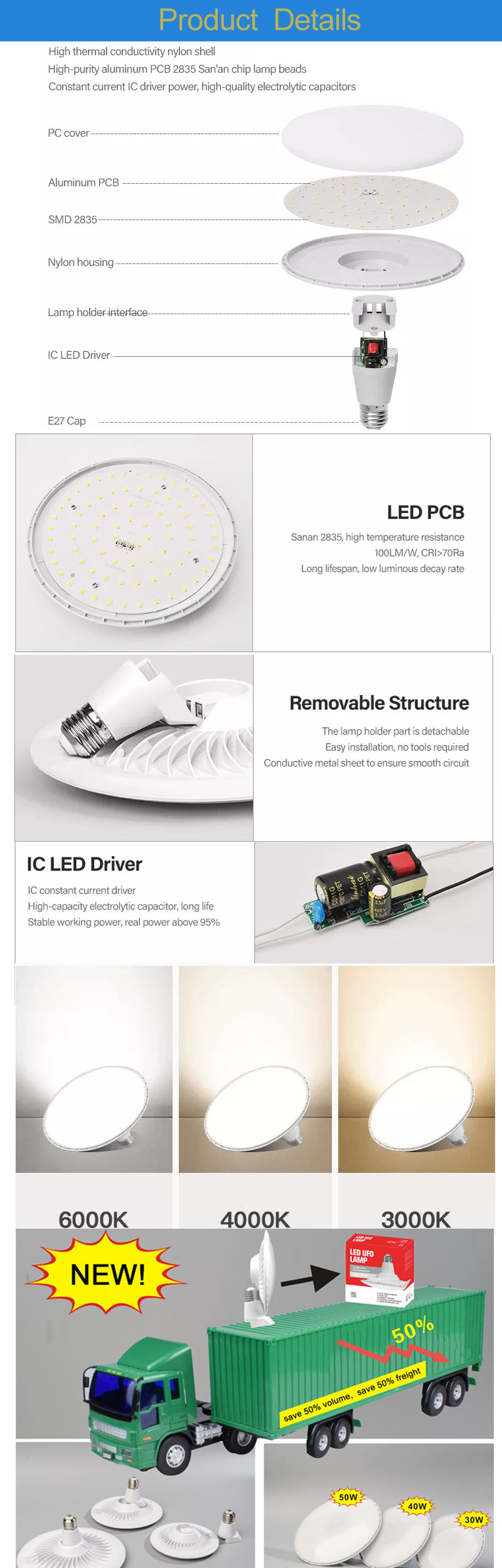

Detachable structure → Lower landed cost
By separating holder and head, the pack volume shrinks significantly, improving pallet density and cutting the volumetric component of freight. Fewer cartons per PO means simpler cross-border consolidation and less warehouse space.
Universal base (E27/B22) → Retrofit at scale
Facilities teams can standardize on one SKU for mixed estates. No fixture swap, no new tooling—shorter outages and predictable labor budgets.
Isolated driver & low-flicker output → Human-centric light
Stable waveforms reduce visual fatigue in retail, education and offices, supporting safety and productivity KPIs.
Aluminum + PC thermal path → Lumen stability
Efficient heat dissipation sustains output over life, protecting the photometric plan you signed off.
Wide voltage (AC 85–265V) → Multi-country rollouts
One electrical platform covers most grids, reducing compliance complexity and inventory risk.
Multi-CCT options → Right ambience per zone
3000K/4000K/6500K (broader customization possible) lets you tune color tone by task, from welcoming front-of-house to high-contrast back-of-house.
3–5-year warranty → Managed TCO
Warranty terms aligned with duty cycles give procurement clear lifecycle cost envelopes.

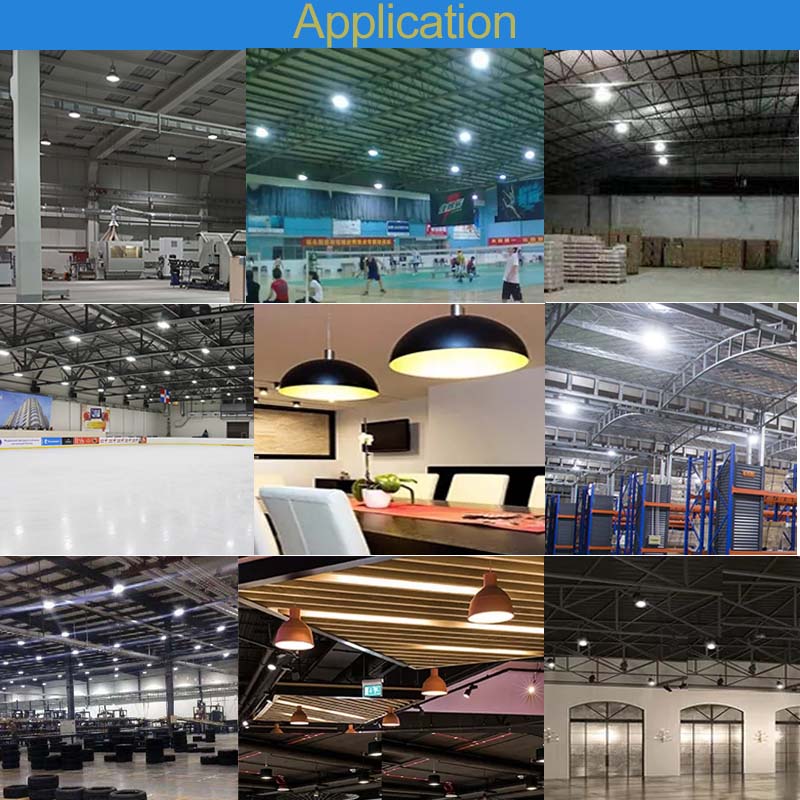

Where the disc optic and retrofit base create outsized value
Retail & Supermarkets: broad, even shelf illumination that reads packaging true; 4000K or 6500K keeps aisles crisp while back-rooms stay functional.
Logistics & Warehousing: general bay lighting for picking, packing and QC. The wide beam reduces shadow pockets along racking.
Healthcare & Education: corridors, waiting areas and classrooms where comfort and visibility matter; neutral CCT helps maintain alertness.
Commercial Offices: open plan and support zones (copy/print, storerooms) with quick upgrades during off-hours.
Public Spaces & Residential Garages: lobbies, mall concourses and parking where fast maintenance and durable casings save downtime.
Across these settings, the E27/B22 retrofit path minimizes fixture churn, while detachable packaging cuts program-level freight.
Fast, tool-light deployment with predictable service windows
Step-by-step install
1）Isolate power.
2) Mount and wire the holder/base to mains per local code.
3) Attach the LED head with a secure twist-lock.
4) Restore power and verify CCT/operation.
Technician efficiency
E27/B22 retrofits eliminate fixture replacements; typical swap cycles fit routine after-hours maintenance with minimal disruption.
Preventive care
Quarterly: dust the PC lens and confirm tight electrical contacts. Semi-annual: visual heat-stress check on aluminum body; replace units showing abnormal discoloration.
Operational tips
Keep ambient within recommended ranges; avoid sealed enclosures that trap heat. Plan spares per site (e.g., 2–3% coverage) to meet SLAs without over-stocking.

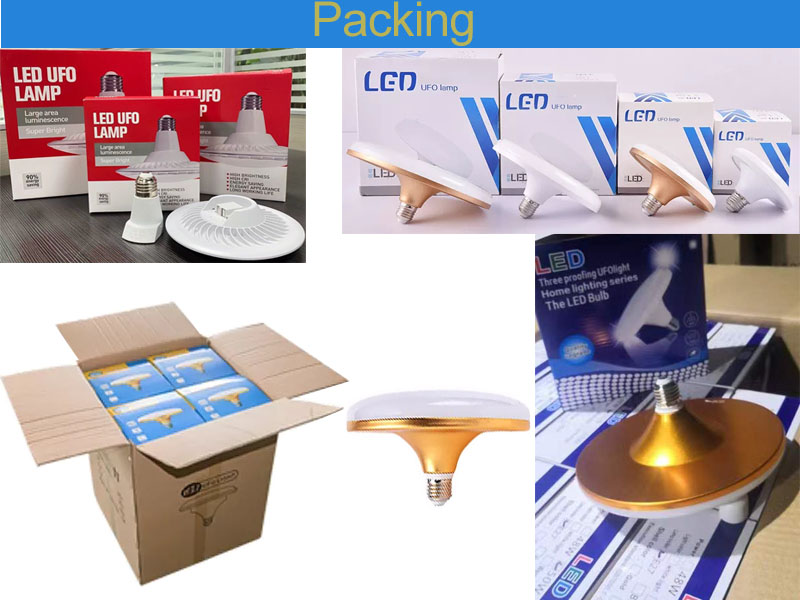

Engineered to lower freight per lumen
Volume compression: the detachable form factor reduces package volume substantially, improving container and pallet utilization.
Lead times: evaluation samples typically 3–5 days; mass production around 20 days depending on spec and quantity.
Cartonization: compact inner packs increase units per master carton; request a packing list to model container fill and CBM per SKU.
Trade terms & documentation: EXW/FOB/CIF as needed; commercial invoice, packing list and test reports prepared for customs.
Risk control: tighter packs mean less in-carton motion and lower damage rates during long-haul moves.
Illustrative freight impact (indicative, not contractual)
| Scenario | Package Volume | Pallet Utilization | Freight/Unit* |
|---|---|---|---|
| Baseline (non-detachable) | Higher | Lower | Higher (volumetric) |
| Detachable design | Lower by ~half | Higher | Lower (volumetric) |
Evidence-based quality you can audit
Documentation: datasheet, material declarations and conformity documents (e.g., CE/EMC/LVD/RoHS) can be provided to support market entry and distributor onboarding.
Process controls: IQC on LED and driver parts; IPQC during assembly; OQC on finished goods with traceable batch IDs.
Electrical safety & reliability: dielectric/hi-pot tests on a sampling plan; surge/ESD resilience per internal spec; thermal stability checks at representative ambient.
Photometric fidelity: CCT and flux sampling per lot; retention of test data for post-market surveillance.
Warranty governance: 3–5-year warranty with RMA terms aligned to operating profile; root-cause analysis available for field returns to protect uptime.
Reduce SKU sprawl while keeping brand control
Brand & packaging: private-label printing, carton artwork, barcodes and compliance marks aligned to your retail or B2B channel.
Optical tuning: standard CCTs (3000K/4000K/6500K) plus 2700–7000K customization to match design palettes or corporate standards.
Electrical options: driver tuning for different mains conditions or specific procurement specs.
Supply chain alignment: pallet patterns, inner-pack counts and carton sizes optimized for your DC or 3PL network.
Engagement model: engineering samples → pilot run → PPAP-style sign-off for stable mass production. We keep the BOM locked to maintain consistency across replenishments.
A supplier optimized for total cost, not just unit price
Freight-first engineering that translates directly into lower landed cost and better container economics.
Deployment velocity via E27/B22 standardization—fewer surprises on site, faster payback.
Operational clarity with rapid samples, transparent quotes and documented QA, enabling clean internal approvals.
Lifecycle partnership: warranty mapped to your SLA, with proactive analytics on returns to contain downtime and reputational risk.
Q1. Are samples available and how fast can I get them?
Yes—evaluation samples are typically prepared within 3–5 days for lab and on-site tests.
Q2. What production lead time should I plan for?
Mass production is usually around 20 days, depending on PO size, customization and current capacity.
Q3. Is the bulb dimmable?
Standard units are non-dimmable for maximum compatibility and stability. Dimmable versions can be discussed after a feasibility check.
Q4. Which sockets are supported?
E27 and B22 as standard, enabling rapid retrofits without fixture changes.
Q5. What about warranty and after-sales support?
A 3–5-year warranty applies, with RMA workflows and evidence files available for audits. Terms are aligned to operating hours and environment.
Q6. Can I customize CCT or packaging?
Yes—standard CCTs (3000K/4000K/6500K) plus broader 2700–7000K customization; branding and carton artwork are supported for OEM/ODM.
Q7. How do you help reduce freight costs?
The detachable design reduces volumetric weight. We provide packing lists and carton specs so your forwarder can optimize container fill.
Q8. Do you supply compliance documents for market entry?
Yes—conformity documents and test reports can be provided to support distributor and customs requirements.
