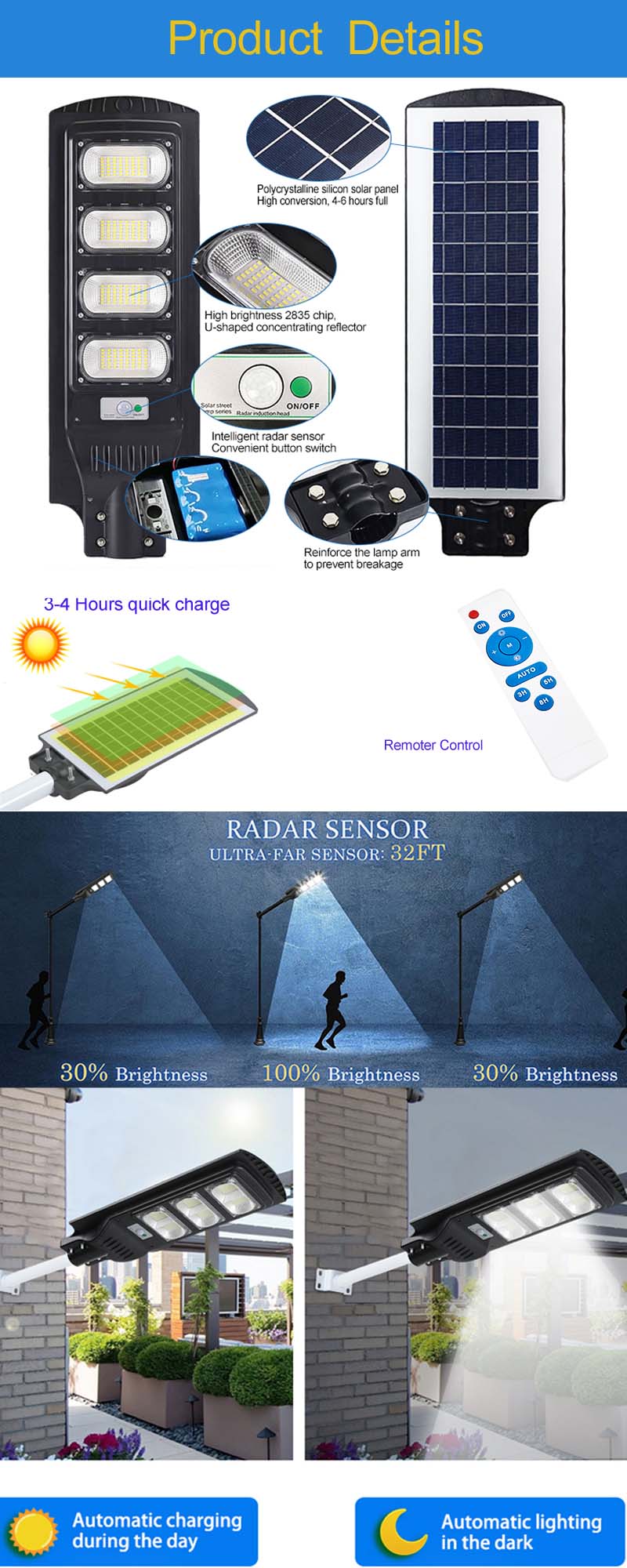

Product Description
When a road falls quiet, your lighting shouldn’t waste power humming at full output. BS-SST001 listens to the street. It dims down softly when no movement is detected and brightens instantly as pedestrians, bikes, or vehicles pass. The effect is both practical and sensory: a calm pool of light becomes crisp and secure, then fades back to a comfortable baseline. That behavior, paired with true dusk-to-dawn automation, turns a pole into a low-maintenance asset.
Engineered for municipalities, park owners, campus operators, and parking-lot managers, this integrated unit brings solar panel, battery, controller, and LED engine into one sealed body. Fewer parts mean faster installs, lower logistics cost, and far fewer failure points. The tempered glass looks clean after rain; the shell is sturdy to the touch and stays quiet in wind. For sites where grid brings complexity or cost, this is a straightforward way to secure light, safety, and savings.
Technical Specifications
| Item | Spec |
| Power options | 60W / 120W / 180W / 240W / 300W |
| Luminous efficacy | 100 lm/W (typical) |
| CCT options | 3000K / 4000K / 6500K (2700–7000K available) |
| LED type | SMD |
| Control | Light control + human body motion sensing |
| Charging time | ≈4–6 hours under strong sunlight |
| Lighting time | >3 days (typical duty cycle) |
| Battery | 32650 lithium battery |
| Ingress protection | IP65 |
| Materials | ABS engineering plastic + tempered glass |
| Certifications | CE, C-tick, EMC, LVD, RoHS, SAA, SASO |
| Warranty | Up to 6 years (per purchase agreement) |
Features & Highlights
Integrated Autonomy: Panel, Li-based cell pack, controller, and optics in one body; fewer interfaces, faster install.
Adaptive Security Lighting: Human-presence detection ramps output up for visibility, then dims to save battery when idle.
Multi-Mode Operation: Time-based and motion-based profiles to balance brightness, comfort, and endurance.
Weather-Ready: IP65 ingress protection with sealed optics and robust enclosure for dust, rain, and coastal air.
Broad CCT Portfolio: 3000K/4000K/6500K options (body copy range 2700–7000K) to fit local codes or visual tasks.
Procurement-Friendly: CE/C-tick/EMC/LVD/RoHS/SAA/SASO listed; OEM branding available for channel programs.
Performance & Photometrics
Lighting outcomes—not panel size—decide safety and user comfort. For sites targeting uniform, glare-controlled roadway lighting, specify by delivered lumens, target illuminance, uniformity (Avg/Min), and mounting geometry. The integrated optics support typical collector roads and large parking bays; pair the right wattage with mounting height to keep pole spacing economical while maintaining vertical illuminance for facial recognition and CCTV color rendition. Request IES files to run a quick layout; if you don’t have a preferred software, we can generate a layout pack with Eavg/Emin and iso-candela plots to de-risk procurement.
Quick Selection Guide（typical, for scoping）
| Mounting Height | Typical Pole Spacing | Recommended Power* |
| 6–8 m | 20–25 m | 60–120W |
| 8–10 m | 25–30 m | 120–180W |
| 10–12 m | 30–35 m | 180–240W |
| ≥12 m | 35–40 m | 240–300W |
Energy Storage & Autonomy
Cell Architecture: Uses 32650-format lithium cells engineered for outdoor cycling; protection circuitry manages over-charge/over-discharge and short-circuit events to safeguard longevity.
Thermal & SOC Protection: Intelligent derating guards the pack under heat; logic tolerates partial state-of-charge operation common in variable weather, reducing stress from shallow/irregular cycles.
Runtime Assurance: Delivers >3 days lighting time after a full solar charge under standard profiles—suitable for long weekends, holiday closures, or multi-day cloud cover.
Profile Strategy: Pair presence-based dimming with time-of-night schedules (higher output during pedestrian peaks, energy-saving levels after curfew) to stretch day-to-day autonomy without compromising safety.
Seasonal Tuning: For high-latitude winters or monsoon windows, shift to endurance-first profiles; adjustments can be made via simple remote control in the field—no laptop or special tools required.
Lifecycle Impact: Smarter discharge windows and adaptive dimming reduce deep cycles, helping preserve capacity over time and lowering replacement frequency—an immediate OPEX and downtime benefit for multi-site operators.
Controls & Smart Operation
Built-In Intelligence: Ships with light control (dusk-to-dawn) plus human-body induction for adaptive output—bright on approach, efficient on standby.
Preset Modes: Multiple pre-configured profiles balance brightness vs. runtime; facilities teams can switch modes quickly during commissioning or seasonal changes.
Smooth User Experience: Soft ramp-up/return-to-dim avoids harsh on/off events that can startle pedestrians or create CCTV exposure swings.
Security Synergy: Motion-responsive brightening improves perceived security and camera clarity at gates, bus stops, corridors, and parking lanes; standby maintains area legibility while conserving energy.
Zonal Governance: For mixed-use estates (retail + residential), stagger profiles by zone to reduce light trespass while keeping drive aisles and walkways readable.
Operational Resilience: On-device controls mean no network dependency; settings persist through power cycles, enabling reliable autonomy across distributed portfolios.
Durability & Weatherproofing
Rugged Enclosure: ABS engineering plastic housing resists UV and impact; tempered-glass window preserves optical clarity and scratch resistance over time.
Ingress Protection: IP65 sealing shields against wind-blown dust and rain; gasketing and venting help mitigate fogging/condensation in humid climates.
Integrated Reliability: All-in-one architecture removes external junctions and weak interfaces, shrinking the failure map and simplifying field maintenance.
Corrosion & Soiling Control: Smooth surfaces shed salt spray and grime; periodic wipe-downs restore performance—no disassembly required—supporting low-touch maintenance cycles.
Environmental Readiness: Designed for coastal, industrial, and high-particulate environments where conventional fixtures suffer seal fatigue or glazing haze.
Fleet Practicality: Fewer SKUs and common spares lower inventory overhead; consistent sealing and materials simplify QA and SLA compliance across sites.
Applications & ROI
Municipal & Rural Roads： Extend lighting to off-grid stretches without cabling CAPEX.
Retail & Business Parks： Improve wayfinding and security perception; avoid peak-tariff OPEX.
Education & Healthcare Campuses： Quiet-hour dimming reduces light trespass while preserving safety.
Residential Communities & HOAs： Zero-bill area lighting with simple mode governance.
Typical payback results from avoided trenching, no meter fees, and negligible maintenance; adaptive dimming further extends battery life, pushing replacement cycles out and stabilizing OPEX.
Why Choose Us
Outcome-First Engineering： We align selection to your target lux and uniformity, not just headline wattage.
Documentation-Ready： IES, datasheets, certifications, and warranty statements packaged for fast approvals.
Deployment Velocity： All-in-one form factor compresses install timelines; no specialized tools needed.
Portfolio Support： For multi-site owners, we standardize modes, spares, and reporting to lower TCO.
OEM & Channel-Friendly： Branding options and multi-region certs to streamline your go-to-market.
FAQ
Q1. How long will the light run after a full charge?
In standard profiles, the unit supports more than 3 days of lighting time. Runtime extends further in dimmed modes and shortens in constant-high modes or during extended overcast.
Q2. Is the battery user-replaceable and protected?
The integrated lithium pack includes over-charge/over-discharge and reverse-connection protection. Replacement can be performed by qualified technicians following our service guide.
Q3. Which color temperature should I choose?
Use 3000K–4000K for residential or hospitality zones to reduce glare and light trespass; 5000K–6500K for higher-security or high-traffic areas where visual acuity and camera color rendering are priorities.
Q4. What about warranty—5 or 6 years?
The product page lists 6 years while the FAQ shows 5 years. We will honor the term agreed in your purchase order. Please confirm the exact duration and coverage scope (battery/driver/LED) at order.
Q5. Can you provide photometric layouts?
Yes. Share site drawings, pole plan, mounting heights, and target illuminance. We’ll return an IES-based layout with Eavg/Emin and recommendations on wattage and spacing.
