Ceiling-mount, rechargeable exit sign engineered for high-traffic interiors that demand long backup time and clean architectural lines.
Wide-range input (AC 85–265V) with PF 0.9 stabilizes performance across complex building loads.
Emergency 3–6 hours—ideal for extended power interruptions and staged evacuations.
Aluminum + acrylic construction delivers a rigid, cool-to-the-touch chassis and a crisp legend glow.
Certified for global projects: CE, C-tick, EMC, LVD, RoHS, SAA, SASO.
OEM/ODM ready: customizable legend/arrow/logo; flexible packaging and private-label options.
| Quantity: | |
|---|---|
BS-EXIT
Bestshow
When corridors fall silent and the mains drop, this ceiling-mounted exit sign stays calm. The aluminum body feels solid in hand; the acrylic panel diffuses a clean, 6500K glow that remains legible through haze and low-ambient conditions. Contractors get a predictable install: wide-range AC 85–265V input, a high power factor driver, and clear access to test points. Facility teams get what they actually need during events—3–6 hours of dependable battery support—buying time for controlled egress, rechecks, and restarts.
The design language is intentionally understated: square edges that sit flush to the ceiling plane; a discreet indicator that blinks only when spoken to; a smooth surface that wipes clean in seconds. No rattles, no hot spots, no last-minute surprises at inspection. For multi-site rollouts, the customization path is straightforward—legend language, arrows, logo, and packaging—so procurement can standardize one bill of materials across regions without sacrificing local code nuance.
| Attribute | Specification |
|---|---|
| Model | BS-EXIT |
| Input Voltage | AC 85–265V |
| Power / PF | 3W, PF 0.9 |
| LED Source / CCT | SMD, 6500K |
| Emergency Duration | 3–6 hours |
| Materials | Aluminum + Acrylic |
| Certifications | CE, C-tick, EMC, LVD, RoHS, SAA, SASO |
| Service | OEM / ODM; logo customizable |
| Mounting | Ceiling (also compatible with wall/recessed/suspended methods as specified) |
| Warranty | 3–5 years |
Long-hold safety window (3–6h): buys time for phased evacuation, generator spin-up, and AHJ rechecks—reducing false restarts and corridor bottlenecks in large footprints.
Universal power acceptance: AC 85–265V with PF 0.9 smooths real-world voltage swings and helps panels run cooler over time, which supports driver longevity.
Architectural clarity: the acrylic panel reads clean from distance; the aluminum frame stays cool and resists flex, so fixtures look “installed-day-one” even after repeated maintenance wipes.
Low-touch upkeep: front-accessible test switch and status indicator enable quick monthly checks; LED source minimizes relamping labor and truck rolls.
Global compliance story: CE/EMC/LVD with RoHS/SAA/SASO support—ideal for cross-border projects and OEM programs that need a single configurable base model.
Brand-ready: dial in legend language and arrows; add private-label logo art; consolidate packaging to your 3PL standard.
Driver & Input: AC 85–265V covers global mains; PF 0.9 supports panel loading without inflating apparent power.
LED Engine: SMD package tuned to 6500K for high-contrast legend visibility and a “daylight-clean” look that cuts through smoky or dim corridors.
Backup System: engineered for 3–6 hours of emergency runtime. Charging and discharge logic is designed for consistent availability during monthly functional checks.
Maintenance: status LED + momentary test switch streamline audits; recommended periodic deep-cycle testing keeps capacity honest in high-duty sites.
Legibility you can feel: the panel’s edge diffusion creates a soft, even band of light—no blotches, no haloing—so the EXIT legend reads with authority from approach angles.
6500K daylight tone: maximizes contrast against common interior palettes (eggshell, cool gray, brushed metal).
Uniformity: controlled spill avoids glare on adjacent cameras and signage, keeping visual noise down in surveillance corridors and security vestibules.
Aluminum chassis: rigid, cool-to-touch frame resists warping and holds alignment after repeated service.
Acrylic display plane: easy to clean, scratch-resistant surface with consistent diffusion; durable through routine solvent-free wipe-downs.
Fasteners & finish: flush hardware maintains a minimal profile; finish resists yellowing under typical interior UV exposure.
Ceiling-first design: compact footprint, balanced weight, and a back-plate that aligns with common junction box patterns.
Method flexibility: usable in ceiling installations and compatible with wall/recessed/suspended methods where the project plan calls for consistent visuals across mixed placements.
Installer QoL touches: clear access to test switch and indicators; straightforward wiring path; legend arrow selection handled before close-up—saves revisits.

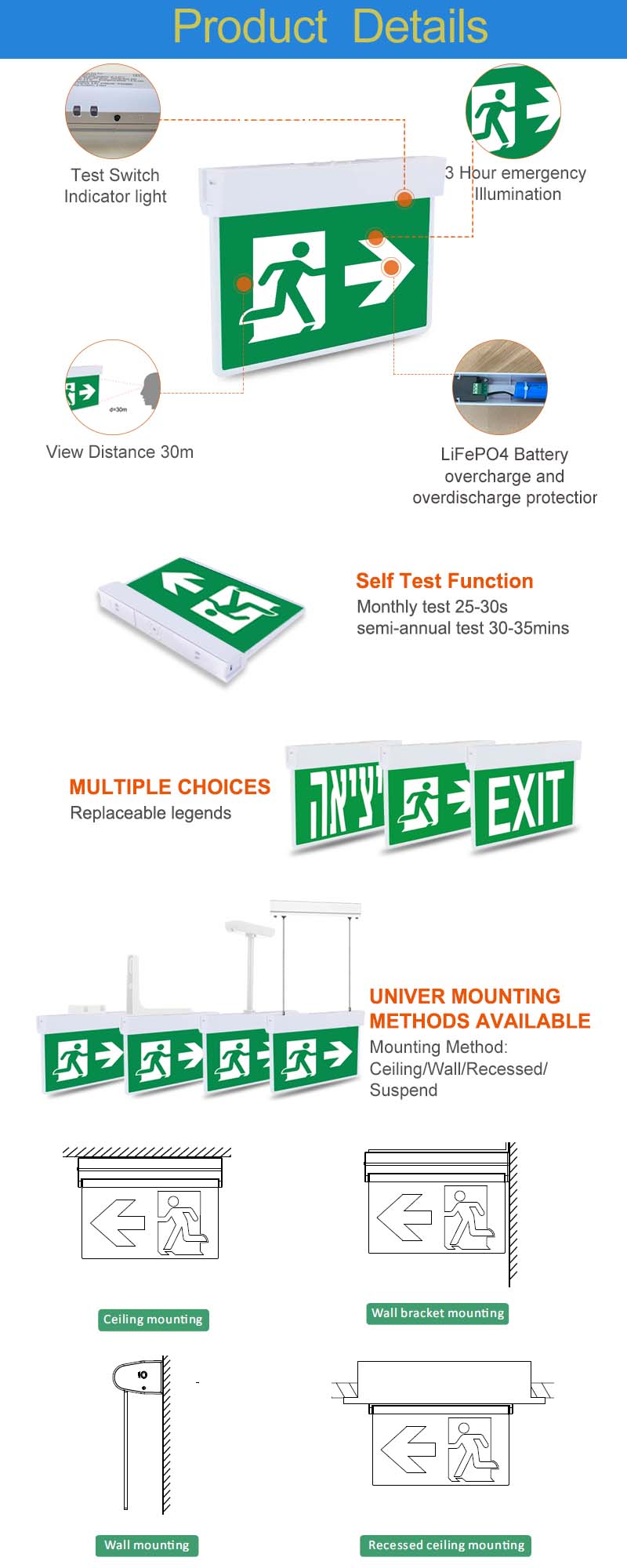

On-device test switch for functional checks.
Status indicator communicates charge/emergency states at a glance during monthly walk-throughs.
Optional site SOPs: pair with a simple maintenance log (paper or CMMS) to timestamp quick tests and annual duration checks.
Commercial & Retail: standard corridors, cash wraps to exits, back-of-house egress.
Healthcare & Education: consistent visibility during staged evacuations and generator transfers.
Transportation & Hospitality: concourses, lounges, guest corridors where long backup windows reduce guest disruption.
B2B program thinking: we design around procurement realities—universal voltage, long backup window, and clean industrial design to standardize SKUs across markets.
Compliance fluency: documentation aligned to CE/IEC and related marks; practical guidance on jurisdictional nuances.
OEM/ODM at scale: predictable DFM, artwork pipelines, and QC checkpoints that protect your brand on the box and in the field.
Lifecycle economics: lower truck-rolls via solid-state light source, simple diagnostics, and accessible test points.
Service posture: responsive engineering support from spec through post-install acceptance.
Q1. Is this model UL 924 listed?
No. It’s designed around CE/IEC frameworks with CE, EMC/LVD, RoHS, SAA, and SASO marks. For UL/NFPA projects, consult your AHJ or request guidance on region-specific alternatives.
Q2. How long will the battery support the sign in an outage?
Rated 3–6 hours under standard conditions. Annual duration tests are recommended to validate capacity in your environment.
Q3. Can we customize the legend and arrow directions?
Yes. Legend language, arrow directions (left/right/up/down), and logo branding can be specified during order configuration.
Q4. What input voltage does it support?
AC 85–265V with PF 0.9, suitable for multi-region deployments without driver changes.
Q5. What’s the recommended maintenance routine?
Monthly functional test (using the test switch) and an annual full-duration test. Keep a simple log to satisfy internal audit or AHJ requests.
Q6. Where is it best applied?
Indoor corridors, stair lobbies, lobbies, and shared spaces across offices, retail, schools, and healthcare where clean aesthetics and extended backup are desired.
Q7. How does the housing hold up over time?
The aluminum + acrylic architecture resists flex and yellowing; surfaces wipe clean quickly, preserving a “day-one” look.
