Power selections: 100W / 150W / 200W
Application fit: Warehouses, gymnasiums, factories, workshops, retail back-of-house
Electrical: AC 85–265V, PF 0.92
Optical: CCT 2700–7000K (standard 3000K / 4000K / 6500K), CRI 80
Build: Aluminum housing + PC lens, compact “UFO” footprint
Assurance: 5-year warranty; multi-market compliance (CE, C-tick, EMC, LVD, RoHS, SAA, SASO)
| Quantity: | |
|---|---|
BS-UFO-4
Bestshow
Walk under a row of these UFO high bays and the space simply calms down: bright, even light, no humming, no hot spots, no dusty glare. The finned aluminum body runs cool to the touch; the PC lens feels solid and quiet when you tap it, signaling a fixture designed to work hard, not show off. In busy aisles or above court lines, the beam stays clean and uniform, helping teams read pallets, labels, or ball trajectories without eye strain.
For operators replacing legacy HID, this series cuts energy and maintenance at the same time. Turn it on and it reaches full output immediately; turn it off and the space returns to neutral without afterglow. The compact profile ships efficiently, installs fast, and disappears into the ceiling once it’s up—leaving you with productivity, not hardware.
| Parameter | Value |
|---|---|
| Model | BS-UFO-4 (BS-UFO4-100W / 150W / 200W) |
| Wattage | 100W / 150W / 200W |
| Input Voltage | AC 85–265V |
| Power Factor | 0.92 |

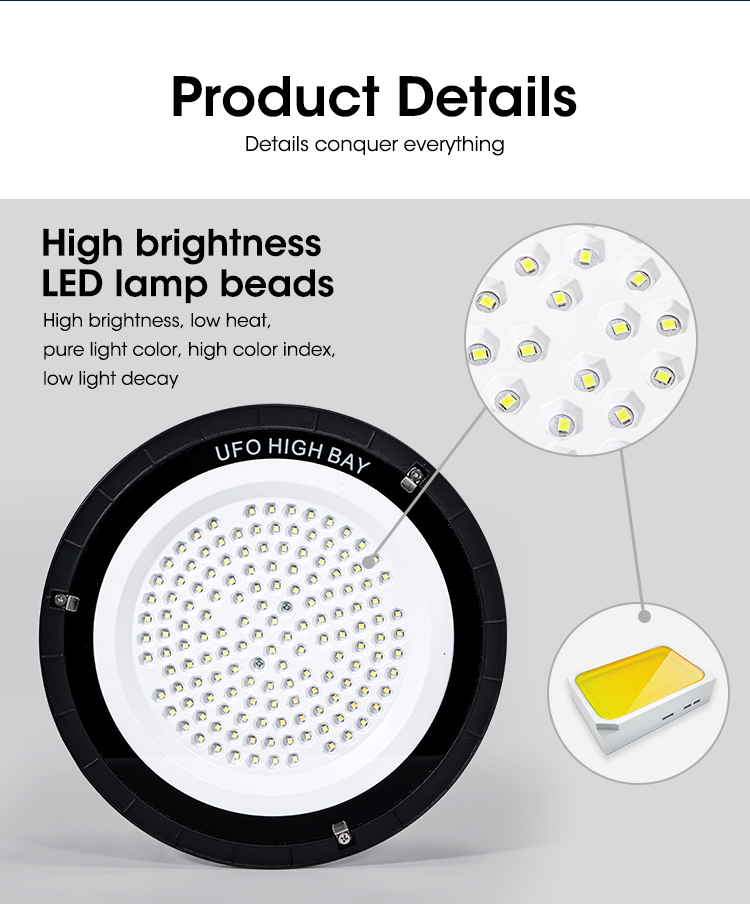

| LED Source | Epistar SMD2835 |
| Luminous Efficacy | 100–130 lm/W |
| CRI | 80 |
| CCT Options | 2700–7000K (Std: 3000K / 4000K / 6500K) |
| Material | Aluminum + PC |
| Certifications | CE, C-tick, EMC, LVD, RoHS, SAA, SASO |
| Warranty | 5 years |
| Typical Applications | Warehouses, supermarket, garage, workshop, stores, factory |
High-bay performance, compact size: the UFO form factor clears sprinkler lines and cranes while maintaining uniformity at height.
Consistent visual comfort: PC lens and balanced distribution reduce glare and flicker for long shifts on the floor.
Flexible CCT options: warm 3000K for retail ambiance, 4000K for balanced task lighting, 6500K for high-contrast inspection zones.
Industrial-grade build: aluminum housing resists vibration and dust; quiet thermal path keeps LEDs stable over time.
Project-friendly supply: OEM/ODM customization available, with carton-wise packing and quick sampling to de-risk ramp-ups.
5-year warranty: stable, predictable ownership for multi-site rollouts.
1) Performance & Optics
Output classes matched to common ceiling heights in distribution centers and gym courts.
Balanced beam for racking aisles and open courts; optional lensing to sharpen cut-off where needed.
CCT strategy by task: warmer light for customer-facing zones; cooler light for high-contrast picking and QA.
2) Electrical & Power Quality
Broadline AC 85–265V covers most international facilities.
Solid PF (0.92) reduces line losses on longer runs; stable drivers minimize visible flicker at height.
Surge and THD options can be tailored in OEM builds when sites require stricter power hygiene.
3) Environment & Durability

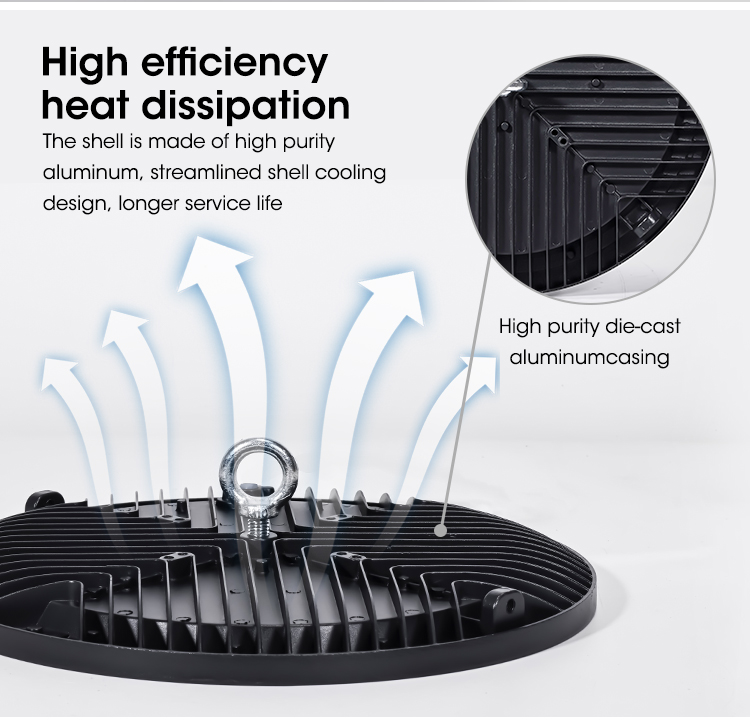

Closed-fin aluminum body manages heat quietly; PC lens resists yellowing and cleans easily.
Designed for dusty, high-activity bays; robust structure tolerates vibration from machinery and ball impact in gyms.
Operating temperature range suitable for most indoor industrial environments.
4) Controls & Integration
Standard on/off operation with wiring access for controls.
For projects, 0–10V dimming, motion/daylight sensors, or group control can be provided via OEM/ODM upon request to meet local codes or rebate programs.
5) Installation & Accessories

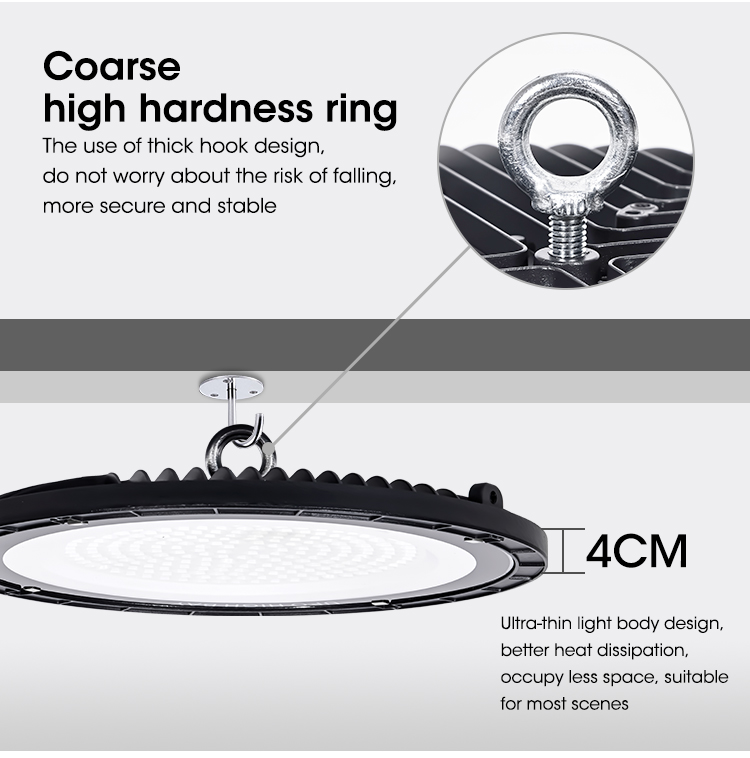

Compact housing ships efficiently and lifts easily; typical hook/suspension methods minimize labor.
Accessory ecosystem (reflectors, brackets, sensor kits) available by project spec to align with layout drawings.
6) Compliance & Warranty
Multi-market regulatory coverage via CE/EMC/LVD/RoHS等； regional certificates (e.g., SAA, SASO) ready for tenders.
5-year warranty with traceable QA records to support audits and FM approvals process where applicable.
7) Applications & Lighting Layout
Warehousing (aisle and open floor), gymnasiums, workshops, back-of-house retail, and light-industrial assembly.
Photometric files (IES) available on request for layout simulations to confirm fc/lux targets and spacing criteria.
8) Economics & TCO
Energy intensity drops immediately versus legacy HID; no relamping cycles, no warm-up time.
Lower maintenance and fewer lift rentals improve payback in multi-bay facilities; standardized SKUs simplify spares.
You get a partner, not just a part number. Quick sampling helps you de-risk pilot zones; consistent cartonization and pallet plans keep inbound predictable. Each lot passes multi-stage QC—materials, appearance, function, and final packing—so you can drop-ship to sites without rework. OEM/ODM engineering supports private-label or control-ready builds, and our team shares drawings, IES files, and installation notes for faster approvals. For multi-site programs, we align on kitting, labeling, and documentation so the field teams move faster with fewer calls.
Q1. Can I get a sample?
Yes. Samples are available for validation and installation mock-ups before bulk release.
Q2. Lead time?
Samples typically ship within 1–2 days; bulk orders are planned around ~20 days depending on volume and configuration.
Q3. How is quality controlled?
We run four inspections—incoming materials, appearance, functional tests, and final packing—before shipment.
Q4. What mounting options are available?
Standard suspension/hook installation is supported; brackets and reflectors can be specified by project.
Q5. Do you support dimming or sensors?
Base units are on/off. For projects, 0–10V dimming and motion/daylight sensors can be integrated through OEM/ODM.
Q6. What documents can you provide for bids?
Datasheet, IES files, wiring/installation notes, and compliance statements; additional documents can be arranged by project.
