Precise, low-glare accent lighting that makes merchandise and materials read true to color (CRI 90).
Interchangeable optics (15°/24°/36°/60° lens and 30°/40°/60° reflector) to sculpt light—from tight drama to soft wash.
Stable output at 100–110 lm/W to reduce energy and HVAC load across multi-store rollouts.

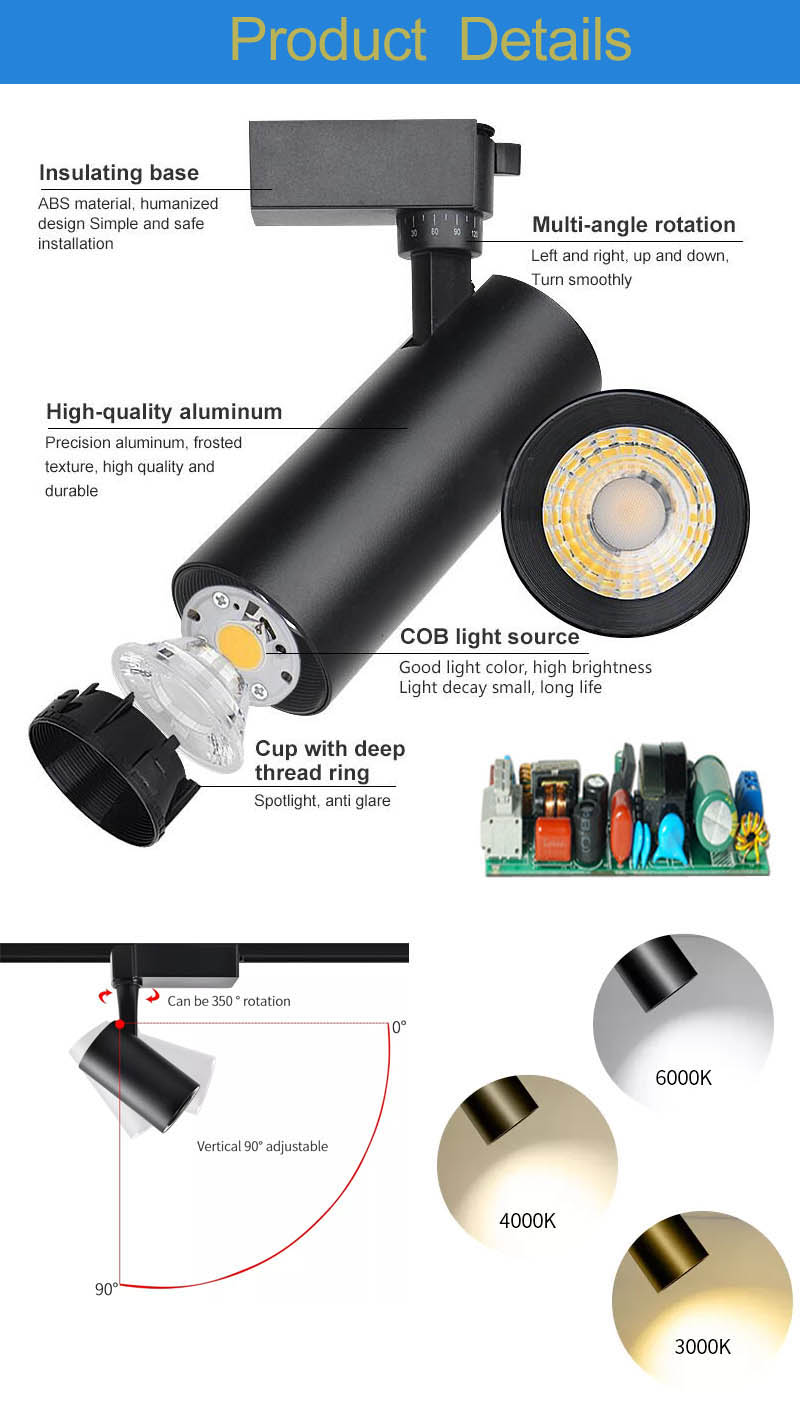

COB engine seated in an aluminum body for rapid heat shedding and long, consistent lumen maintenance.
Broad CCT range (2700–7000K) for warm retail moods, neutral office clarity, or cool gallery punch.

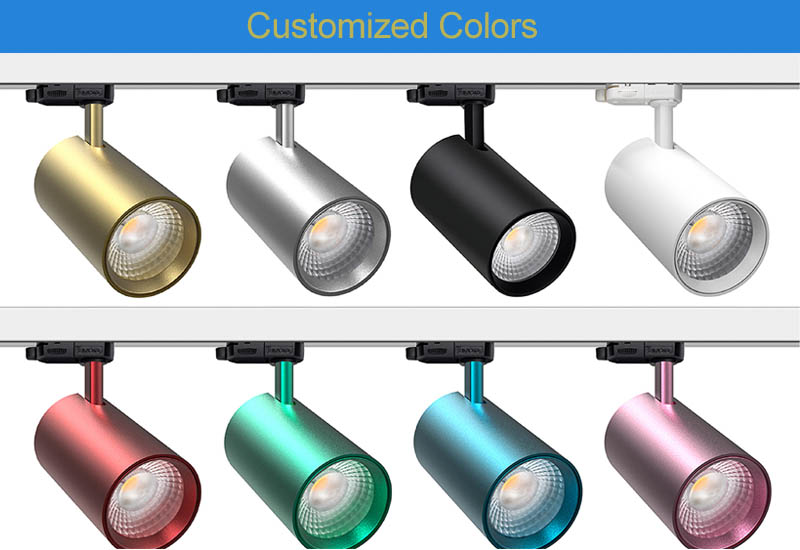

OEM/ODM-ready with brand finishes (white/black/silver/golden) and labeling.
| Quantity: | |
|---|---|
BS-DGD
Bestshow
Led Track Light (Model BS-DGD) is engineered for visual merchandising and task-rich interiors where light needs to work as quietly as it looks. The beam reads clean—no jitter, no strobe—so fabrics, food, and finishes appear as they should. Rotate and aim to find that sweet, focused edge on a mannequin or a display table; swap a lens when the layout changes next season. Under the skin, the dense aluminum housing wicks heat away from the COB core, keeping output steady and color consistent over time. Facility teams will appreciate universal input (AC85–265V) across markets and the option to specify higher power factor where required. For brand teams, the finish palette and private-label options make it easy to align fixtures with store identity without sacrificing performance.
| Item | Spec |
|---|---|
| Model | BS-DGD |
| Wattage | 20W / 30W / 40W / 50W |
| Input Voltage | AC85–265V |
| Power Factor | 0.5 / 0.9 |
| LED Source | COB |
| Luminous Efficacy | 100–110 lm/W |
| CCT | 2700–7000K |
| CRI | 90 |
| UGR (lens) | 10–15 |
| Beam Angles (lens) | 15° / 24° / 36° / 60° |
| Beam Angles (reflector) | 30° / 40° / 60° |
| Body Colors | White / Black / Silver / Golden / Custom |
| Material | Aluminum |
| Certifications | CE, C-tick, EMC, LVD, RoHS, SAA, SASO |
| Service | OEM / ODM Customized |
| Warranty | 3–5 years |
Visual comfort by design: Anti-glare architecture and low UGR help reduce eye fatigue in long-dwell spaces such as showrooms and galleries.
Change the beam, not the fixture: Modular optics let teams retune accent intensity for seasonal resets without re-running circuits.
Thermal headroom: The aluminum body functions as a heat sink, preserving LED junction temperature and color point stability—critical for color-sensitive displays.
Operational efficiency: With 100–110 lm/W and high-PF option, sites can hit energy KPIs without compromising punch.
Finish consistency at scale: Multi-step finishing (white/black/silver/golden) supports fleet-level rollouts and branded interiors.
Wide-range input: AC85–265V accommodates global deployments and retrofit scenarios.
Beams
15°: Tight highlights on mannequins, sculpture, or feature endcaps; crisp shadowing to create depth.
24° / 30°: Balanced accent for shelf bays and dining tables; brings out texture without harsh contrast.
36° / 40°: Area accent or small-zone wash for lounge zones, cosmetics, or reception counters.
60°: Broad wash for perimeter walls or open offices to minimize contrast spikes.
CCT
2700–3000K: Warm, inviting; favors wood, leather, baked goods, hospitality lobbies.
3500–4000K: Neutral clarity for offices, pharmacies, and general retail where true-to-life color is important.
5000–7000K: Cool, vivid presentation for tech counters, galleries with daylight intent, or high-contrast merchandising.

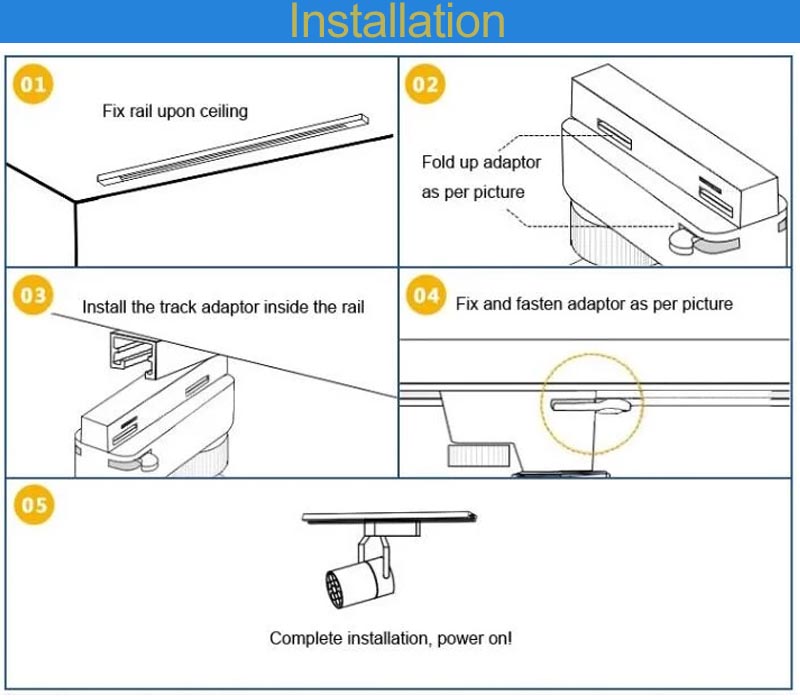

Track systems: Compatible with mainstream AC track infrastructures; confirm pin/adapter style and regional standard during RFQ.
Electrical: Universal AC85–265V input; specify PF0.9 versions where local code or utility programs prefer high power factor.
Aiming: Standard tilt and rotation for precise beam placement; lockable after focus to resist drift during store operations.
Retrofit: Ideal for replacing halogen or first-gen LED heads to reduce load and improve visual comfort.

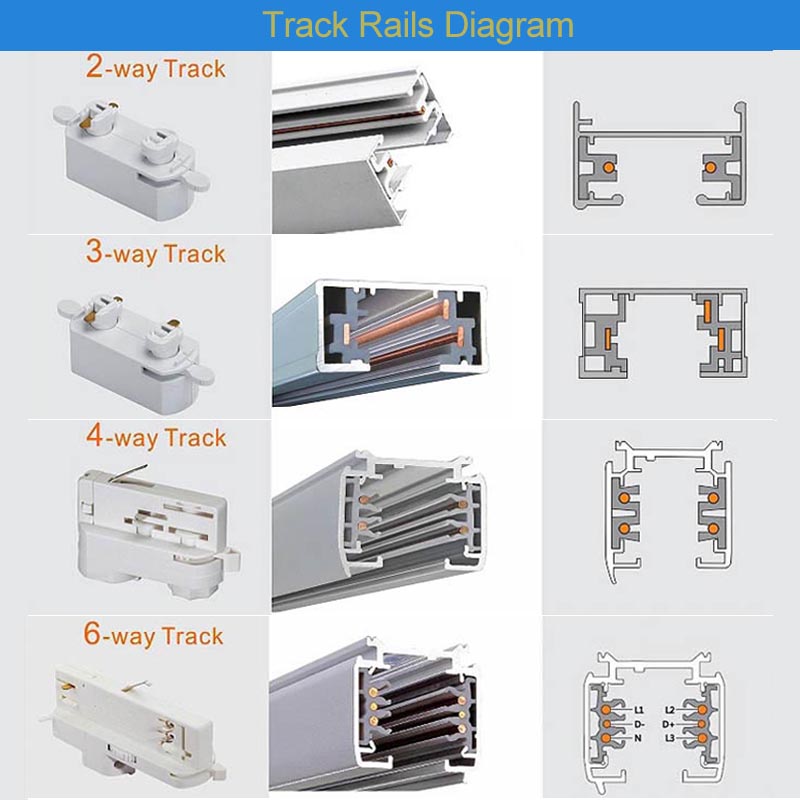

Rails & joiners: Straight rails in multiple lengths, L/T/X joiners for layout flexibility.
Adapters: Track adapters, live ends, dead ends, and feed options for clean ceiling integrations.
Optics & media: Interchangeable lenses/reflectors; optional honeycomb or diffusion media for added cut-off or softness.
Finish kits: Coordinated canopy and trim kits to harmonize with ceiling palettes or brand colorways.

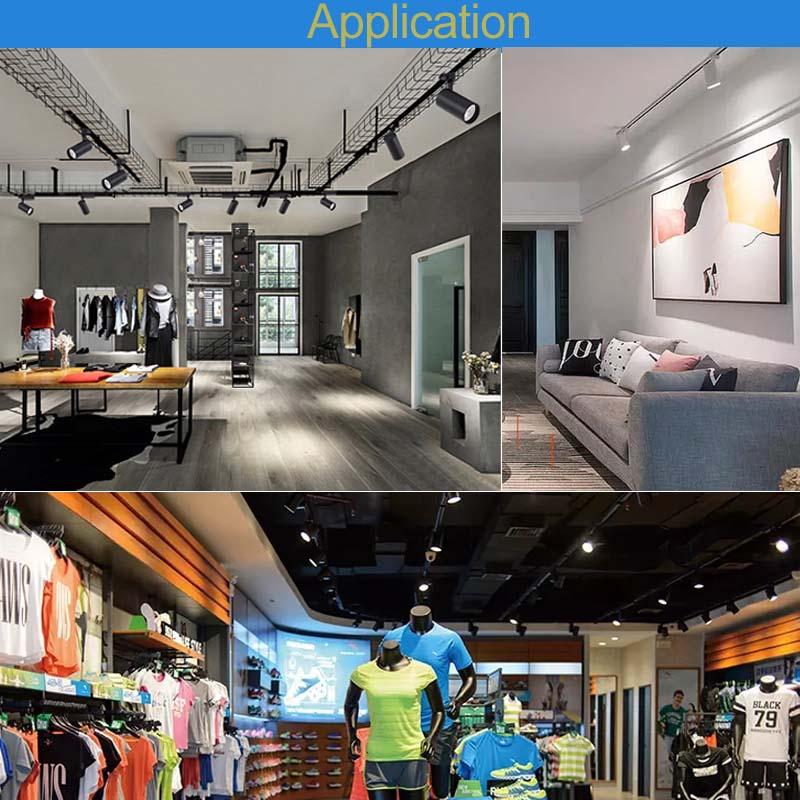

Retail: Use 24° + 36° layering to pull focus to new arrivals while keeping perimeter shelving legible.
Hospitality: Warm CCT with lower UGR over lounges; tighter beams on art and feature walls to add narrative.
Office: Neutral CCT with broad beams to supplement ambient lighting at collaboration zones without screen glare.
Museum/Showroom: High CRI and narrow beams to protect narrative hierarchy—object first, fixture invisible.
Certifications: CE, C-tick, EMC, LVD, RoHS, SAA, SASO—supporting compliance for multi-region deployments.

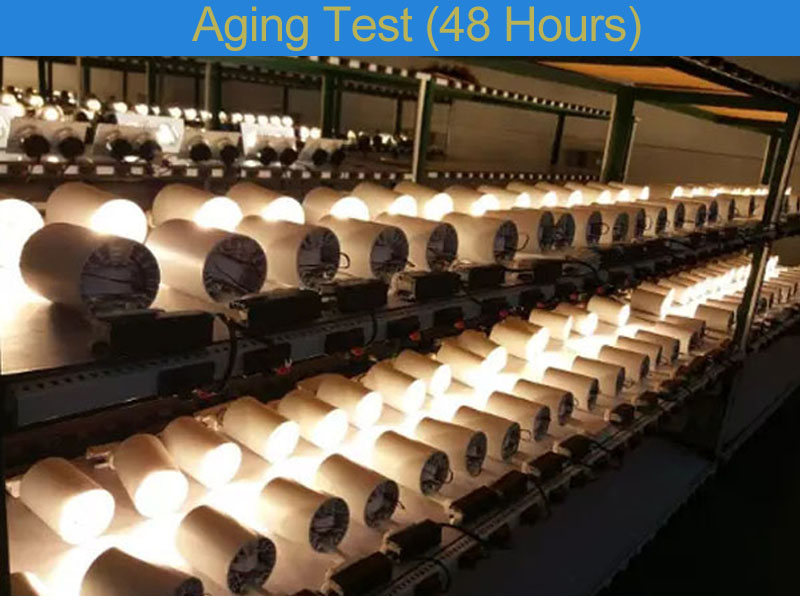

Reliability practices: Flicker-free driver architecture and thermal validation support consistent, low-fatigue illumination through the service life.
Warranty: 3–5 years with standard RMA pathways; higher PF options available to align with programmatic energy requirements.
MOQ: Flexible for pilots and VM trials; bulk tiers available for chain rollouts.
Lead time: Samples typically within one work-week; volume production within 1–2 weeks post-approval.
Branding: Private-label packaging and finish codes supported for franchise or distributor models.
OEM/ODM capability: From photometric targeting to private finishes and labeling, we tailor the luminaire to your brand and planogram.
B2B fluency: We understand store refresh cycles, energy targets, and installation windows—and build to those constraints.
Lifecycle value: High efficacy, stable color, and field-swappable optics reduce both operational cost and display maintenance headaches.
Assurance: Regional certifications, structured QA, and a responsive warranty framework reduce procurement risk.
Can I specify different beam angles across one order?
Yes. Mix optics per store or per department; we’ll pack by site plan for easier installation.
Do you support higher power factor?
Yes—PF0.9 option is available on request for codes or rebate programs that require it.
Is the product dimmable?
Standard builds are flicker-free and non-dimmable; dimmable driver configurations can be discussed for project versions.
Can you match our brand finish?
We offer white/black/silver/golden as standard and can evaluate custom RAL or anodized tones for volume programs.
What documentation can you provide for submittals?
Datasheets, IES files, and compliance certificates can be included in the approval package upon request.
